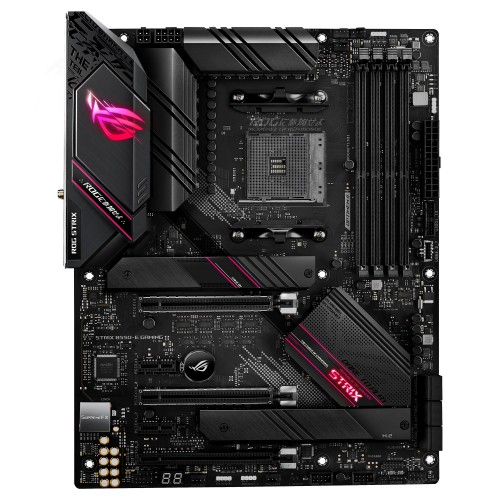

ASUS ROG STRIX B550-E GAMING AM4 ATX Motherboard

Computer Components > Motherboard > ASUS (AMD)

ASUS ROG STRIX B550-E GAMING AM4 ATX Motherboard

Model: ROG STRIX B550-E GAMING
AMD AM4 Socket for Ryzen 5000/4000 G/3000 Processors
4 x DIMM, Max. 128GB, DDR4
14+2 Power Stages
2 x M.2 Sockets

Available EMI Offer

TK 27500

~~TK 29620~~

Brand:

Asus

Quantity

ADD TO CART

ORDER NOW

Product Details

Basic Information
Supported CPU	AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset	AMD B550
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio	- Rear audio USB Type-C port - Audio Shielding ROG SupremeFX7.1-Channel High Definition Audio CODEC S1220A - Premium Japanese audio capacitors - Audio Cover - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input - Supports up to 32-Bit/192kHz playback * Audio Feature : - SupremeFX Shielding Technology
Expansion Slots
PCI	1 x PCIe 3.0 x16 (x4 mode) * 2 x PCIe 3.0 x1 2 x PCIe 4.0 x16 (x16 or dual x8) 2 x PCIe 3.0 x16 (x16 or dual x8)
M.2 Socket	1 x M.2_2 socket 3, AMD Ryzen 4000 G-Series Processor : AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)* Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
Memory
Type	DDR4
Slots	4 x DIMM
Supported Memory	4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory AMD Ryzen 4000 G-Series Processors 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory OptiMem II Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU.
Maximum Memory	128GB
Graphics
Graphics	1 x HDMI 2.1(4K@60HZ) 1 x DisplayPort 1.2 *Graphics specifications may vary between CPU types. Integrated Graphics Processor Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology
Connector & Ports
HDMI	1 x HDMI 2.1(4K@60HZ)
Display Port (s)	1 x DisplayPort 1.2
USB (s)	3 x USB 3.2 Gen 2 port(s)(2 x Type-A +1 x USB Type-C) 1 x USB 2.0 port(s)(1 x audio USB Type-C ) 4 x USB 2.0 port(s)(4 x Type-A) Rear USB Port ( Total 8 ) Front USB Port ( Total 7 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) 1 x USB 3.2 Gen 2 front panel connector port(s)
LAN Port (s)	Intel I225-V 2.5Gb Ethernet ASUS LANGuard
Supported Storage	1 x M.2_2 socket 3, AMD Ryzen 4000 G-Series Processor : AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)* Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD B550 Chipset : 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 10
Audio	Rear audio USB Type-C port
Internal I/O Ports	1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x Thunderbolt header(s) 1 x Q-Code 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s)
TPM (Trusted Platform Module )	N/A
Warranty Information
Manufacturing Warranty	3 years
