Asus ROG Strix B550-F Gaming (WI-FI) AM4 ATX Motherboard

Computer Components > Motherboard > ASUS (AMD)

Asus ROG Strix B550-F Gaming (WI-FI) AM4 ATX Motherboard

Model: Asus ROG Strix B550-F Gaming (WI-FI)
AMD AM4 socket for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Multi-GPU CFX Support
Best gaming connectivity
6-Layer PCB

Available EMI Offer

TK 21500

~~TK 23000~~

Brand:

Asus

Product Details

Basic Information
Supported CPU	AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset	AMD B550
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Expansion Slots
PCI	1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 1 x PCIe 4.0 x16 (x16 mode)
Memory
Type	Dual Channel Memory Architecture
Slots	4 x DIMM slots
Supported Memory	4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Memory
Maximum Memory	128GB, DDR4
Graphics
Graphics	Integrated Graphics Processor

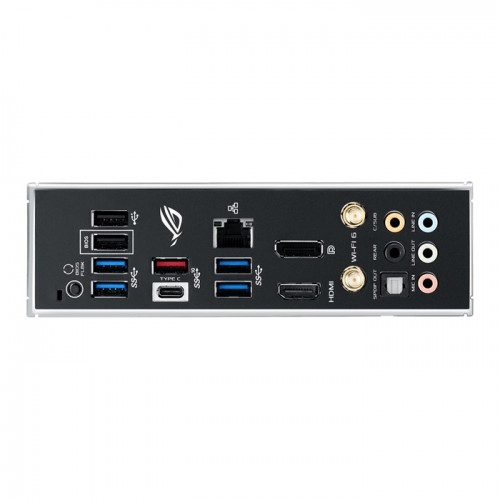

Connector & Ports
HDMI	1 x HDMI 2.1(4K@60HZ)
Display Port (s)	1 x DisplayPort 1.2
USB (s)	Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s)
LAN Port (s)	Intel I225-V 2.5Gb Ethernet ASUS LANGuard
Supported Storage	1 x M.2_1 socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD B550 Chipset : 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
Audio	- Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input - Supports up to 32-Bit/192kHz playback * Audio Feature : - SupremeFX Shielding™ Technology - Optical S/PDIF in port(s) at back panel - Premium Japanese audio capacitors - Audio Cover * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. - Audio Shielding ROG SupremeFX7.1-Channel High Definition Audio CODEC S1220A
Internal I/O Ports	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 2 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s)
Warranty Information
Manufacturing Warranty	03 Years Warranty
