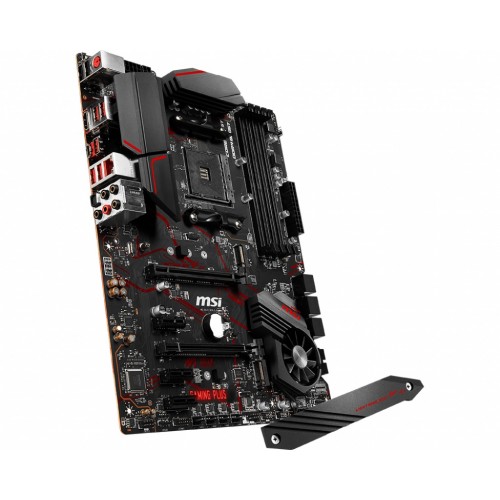

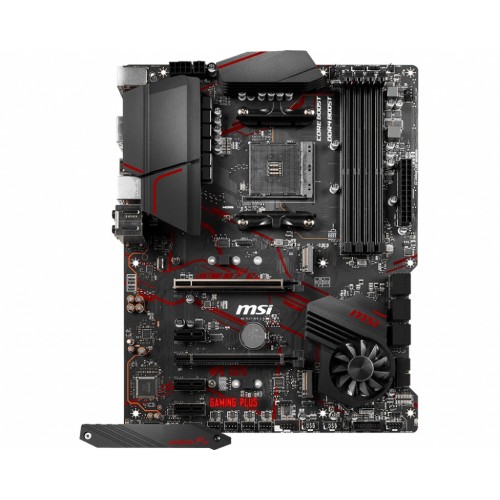

MSI MPG X570 Gaming Plus AM4 AMD ATX Motherboard

Computer Components > Motherboard > MSI (AMD)

MSI MPG X570 Gaming Plus AM4 AMD ATX Motherboard

Model: MSI MPG X570 Gaming Plus
Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors
Lightning Fast Game experience
Mystic Light : Audio Boost 4
8+4 pin CPU Power Connector

Available EMI Offer

TK 17000

~~TK 18450~~

Brand:

msi

Product Details

Basic Information
Supported CPU	Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors
Chipset	AMD X570 Chipset
Form Factor	ATX Form Factor
Audio	- 7.1-Channel High Definition Audio
Expansion Slots
PCI	- 1x PCIe 4.0/3.0 x16 slot (PCI_E1) - 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode - 2nd Gen AMD Ryzen support PCIe 3.0x16 mode -Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode - 1x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode) - 3x PCIe 3.0 x1 slots1 PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot.
M.2 Socket	- Lightning Gen4 x4 M.2 with M.2 Shield Frozr accessory - 2x M.2 slots (Key M)
Memory
Type	DDR4
Slots	MEMORY CHANNEL: Dual DIMM SLOTS: 4
Supported Memory	1866/ 2133/ 2400/ 2667/ 2800/2933 /3000 /3066 /3200 /3466 /3600 /3733 /3866 /4000 /4133 /4266 /4400 + Mhz by JEDEC and A-XMP OC MODE
Maximum Memory	Maximum shared memory of 2048 MB
Graphics
Graphics	- 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz - Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors. - Supports 2-Way AMD CrossFire Technology
Max Shared Memory	- Maximum shared memory of 2048 MB

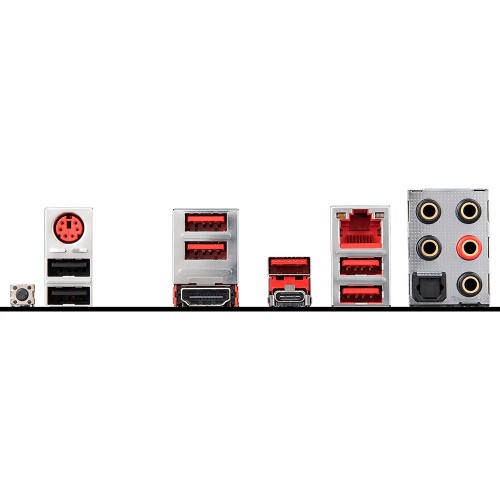

Connector & Ports
HDMI	- 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz
USB (s)	AMD X570 Chipset : - 6x USB 3.2 Gen 1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen 1 connectors) - 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD Processor : - 2x USB 3.2 Gen 2 (3rd Gen AMD Ryzen) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzenwith Radeon Graphics) ports (1x Type-A & 1x Type-C) on the back panel - 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
LAN Port (s)	- 1x Realtek 8111H Gigabit LAN Controller
Supported Storage	AMD X570 Chipset: - 4x SATA 6Gb/s ports(SATA3-SATA6) - 2x M.2 slots (Key M) - M2_1 slot(from AMD Processor) - Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) - Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) - Supports 2242/ 2260/ 2280/ 22110 storage devices - M2_2 slot (from AMD® X570 Chipset) - Supports PCIe 3.0 x4 and SATA 6Gb/s - Supports 2242/ 2260/ 2280 storage devices ASMedia ASM1061: -2x SATA 6Gb/s ports (SATA1, SATA2)
Audio	Realtek ALC1220 Codec: - 7.1-Channel High Definition Audio - Supports Optical S/PDIF output
Internal I/O Ports	Expansion Slots: 1 x PCIe 4.0 x16 (x16 mode) 1 x PCIe 4.0 x16 (x4 mode) 3 x PCIe 3.0 x1 USB: 2 x USB 2.0 Header (Supports 4 USB Type-A Ports) 2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Ports) Multi-GPU Support: 2-Way AMD CrossFireX Air Cooling: 1 x 4-Pin CPU 4 x 4-Pin System Liquid Cooling: 1 x 4-Pin Pump Power Connectors: 1 x 24-Pin Mainboard 1 x 8-Pin CPU 1 x 4-Pin CPU Security: Chassis Intrusion, TPM Module LED Header: 4 x RGB Audio: None Diagnostics: Clear CMOS Legacy: 1 x Serial 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Clear CMOS jumper 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 4x EZ Debug LEDs
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	03 years warranty
