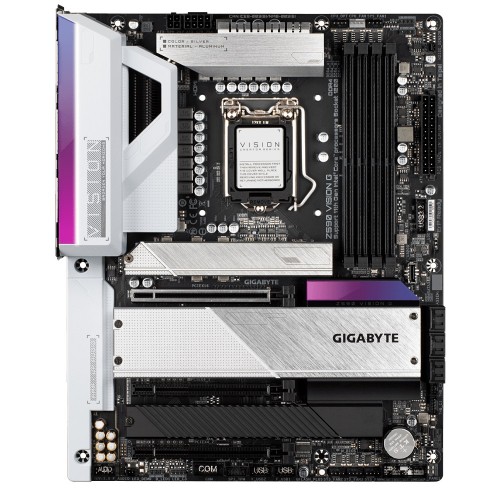

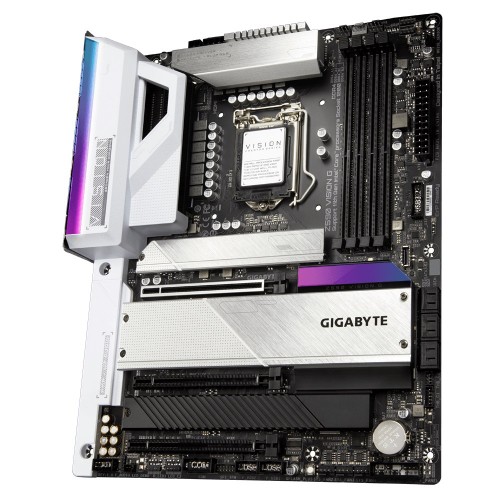

Gigabyte Z590 VISION G Intel 10th and 11th Gen ATX Motherboard

Computer Components > Motherboard > GIGABYTE (INTEL)

Gigabyte Z590 VISION G Intel 10th and 11th Gen ATX Motherboard

Model: Gigabyte Z590 VISION G
Support 10th and 11th Gen Intel Core Series Processors
Smart Fan 6
4 Ultra-Fast NVMe PCIe
Effective Cooling Solution

TK 25000

~~TK 27670~~

Brand:

Gigabyte

Product Details

Basic Information
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	30.5cm x 24.4cm
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2) (The PCIEX4 slot conforms to PCI Express 3.0 standard.)
Memory
Type	DDR4
Slots	4 x DIMM sockets
Supported Memory	11th Generation Intel Core i9/ i7/ i5 processors: Support for DDR4 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules 10th Generation Intel Core i9/ i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules 10th Generation Intel Core i5/ i3/ Pentium/ Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules Dual-channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	128 GB (32 GB single DIMM capacity)
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x USB Type-C port, supporting USB Type-C and DisplayPort video outputs and a maximum resolution of 4096 x 2304 @ 60 Hz 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 30 Hz Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Connector & Ports
HDMI	1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 30 Hz

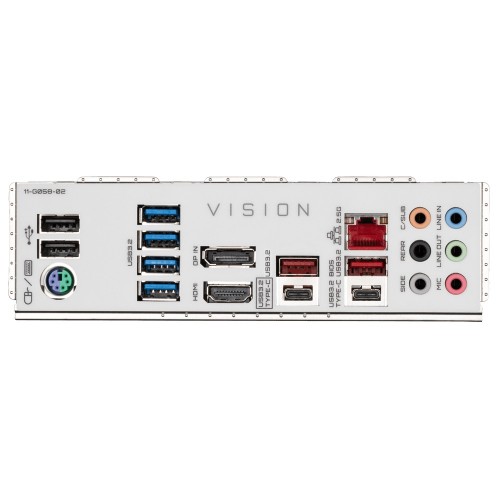

USB (s)	1 x USB Type-C port, supporting USB Type-C and DisplayPort video outputs and a maximum resolution of 4096 x 2304 @ 60 Hz 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/ 1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/ 1.1 ports available through the internal USB headers
LAN Port (s)	Intel 2.5GbE LAN chip (2.5 Gbit/ 1 Gbit/ 100 Mbit)
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 4.0 x4/ x2 SSD support) (M2A_CPU) 2 x M.2 connectors (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 4.0 x4/ x2 SSD support) (M2B_CPU)(M2C_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/ x2 SSD support) (M2P_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready
Audio	Realtek ALC4080 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button 1 x noise detection header
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only)
Warranty Information
Manufacturing Warranty	3 Years
