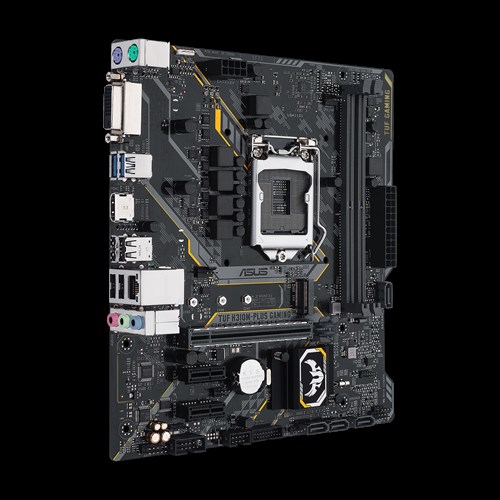

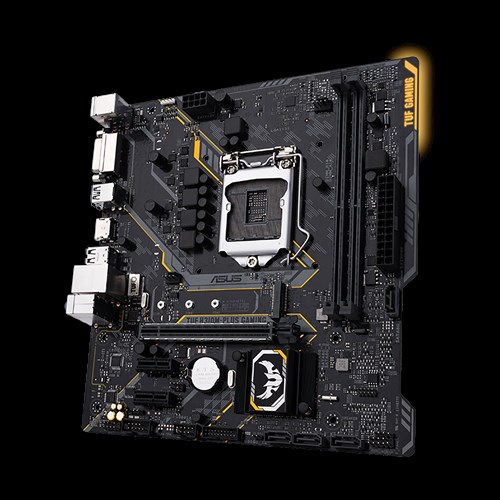

Asus 8th Gen TUF H310M-PLUS GAMING mATX Motherboard

Computer Components > Motherboard > ASUS (INTEL)

Asus 8th Gen TUF H310M-PLUS GAMING mATX Motherboard

Model: TUF H310M-PLUS GAMING
CPU: 8th Generation Intel Processors
2 x DDR4 DIMM
Chipset: Intel H310
3 x PCI Express slot

TK 6900

~~TK 7470~~

Brand:

Asus

Product Details

Basic Information
Supported CPU	Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0
Chipset	Intel® H310
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information, F4 AURA ON/OFF, F9 Search
Form Factor	Micro ATX Form Factor 8.9 inch x 8.2 inch ( 22.6 cm x 20.8 cm )
Expansion Slots
PCI	Intel® H310 Chipset 1 x PCIe 3.0/2.0 x16 (x16 mode) 2 x PCIe 2.0 x1
M.2 Socket	1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support(both PCIE 2.0 x4 & SATA mode)
Memory
Type	2 x DIMM
Slots	DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supported Memory	DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
Maximum Mamory	32GB
Graphics
Graphics	Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Max Shared Memory	1024 MB

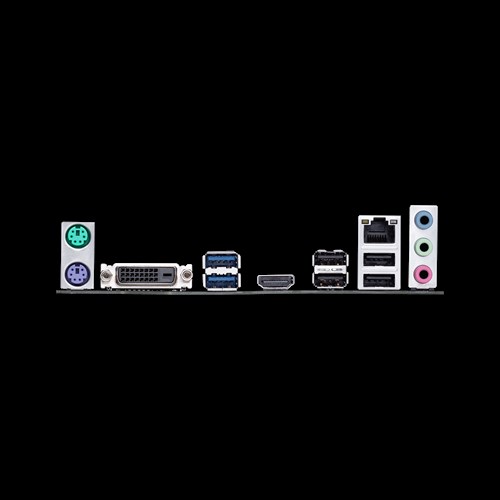

Connector & Ports
HDMI	1 x HDMI
USB (s)	Intel® H310 Chipset : 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board) Intel® H310 Chipset : 6 x USB 2.0/1.1 port(s) (4 at back panel, black, Type-A, 2 at mid-board)
LAN Port (s)	Intel® I219V, 1 x Gigabit LAN Controller(s) TUF LANGuard
Supported Storage	Intel® H310 Chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support(both PCIE 2.0 x4 & SATA mode)*1 4 x SATA 6Gb/s port(s),
Audio	Realtek® ALC887 7.1-Channel High Definition Audio CODEC *2 Audio Feature : - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
Internal I/O Ports	1 x RGB Header(s) 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector
DVI-D (s)	1 X DVI-D
Warranty Information
Manufacturing Warranty	03 years
