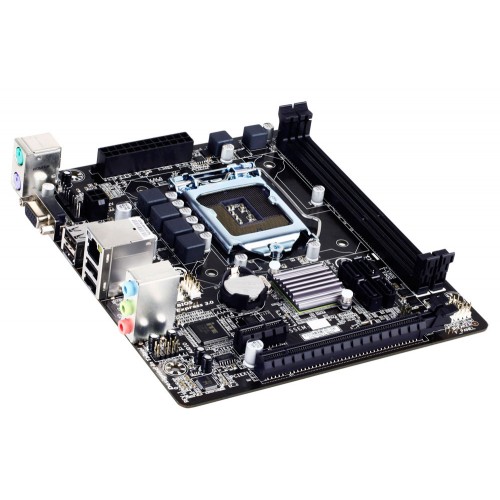

Gigabyte GA-H61M-S DDR3 Micro ATX Motherboard

TK 7300

~~TK 7500~~

Brand:

Gigabyte

Quantity

ADD TO CART

ORDER NOW

Basic Information
Supported CPU	Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
Chipset	Intel H61 Express Chipset
BIOS	1 x 32 Mbit flash Use of licensed AMI EFI BIOS PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Form Factor	Micro ATX Form Factor; 19.0cm x 17.0cm
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
M.2 Socket	No
Memory
Type	Dual channel memory architecture
Slots	2 x 1.5V DDR3 DIMM sockets
Supported Memory	Support for DDR3 1333/1066/800 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	16 GB
Graphics
Max Shared Memory	1 GB
Connector & Ports
HDMI	No
D-Sub (s)	1 x D-Sub port
USB (s)	4 x USB 2.0/1.1 headers
LAN Port (s)	1 x RJ-45 port
Supported Storage	4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
Audio	3 x audio jacks (Line In, Line Out, Mic In)
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x speaker header 1 x chassis intrusion header 1 x Clear CMOS jumper
Warranty Information
Manufacturing Warranty	03 Years
