Security / CCTV > DVR / XVR > Dahua

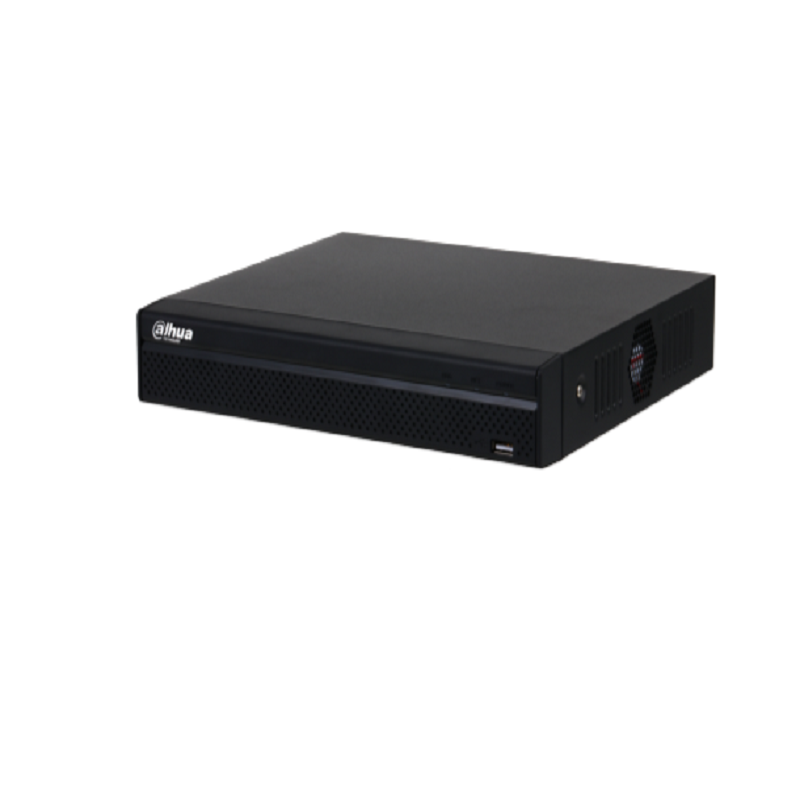

Dahua DHI NVR1108HS-S3/H 8 Channel Compact Video Recorder


> New 4.0 user interface·
> 4–ch@1080P(30FPS), self-adaptive decoding capability
> Support for mainstream cameras of ONVIF and RTSP protocol
> Smart H.265+/Smart H.264+/H.265/H.264

TK 0

Brand:

Dahua

Coming Soon..




Product Details

System
Main Processor Embedded Processor
Operating System Embedded LINUX
Operation Interface Web/operating in local GUI
Video
Access Channel 8 channels
Network Bandwidth 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding.
Resolution 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF
Decoding Capability 1–ch@8MP(30FPS) or 1–ch@5MP(30FPS) or
2–ch@4MP(30FPS) or 2–ch@3MP(30FPS) or 4–
ch@1080P(30FPS)8–ch@720P(30FPS)
Video Output 1 VGA/1 HDMI simultaneous video output, maximum resolution 1080P
Multi-screen Display 1 / 4 / 8 /9
Browser Onvif, RTSP
Compression
Video Smart H.265+/H.265/Smart H.264+/H.264
Audio PCM/G711A/G711U/G726/AAC
Network
Network Protocol HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP,
DNS, P2P
Mobile Phone Access iDMSS(iOS), gDMSS(Android)
Access Standard ONVIF(profile T/profile S/profile G),CGI,SDK
Browser Chrome, IE9 or above, Firefox
Record Playback
Multi-channel Playback Up to 8 channels playback
Record Mode Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording
Storage Local HDD and network
Backup USB device
Playback Function 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame 2. Full screen, backup (cut/file), partially enlarge, audio on/off
Alarm
General Alarm Motion detection, privacy masking, video loss, PIR alarm, IPC alarm
Anomaly Alarm Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly
Alarm Linkage Video recording, snapshot, log, preset, tour
External Port
HDD 1 SATA 2.0 port, up to 8 TB for a single HDD. The maximum HDD capacity varies with environment temperature
USB 1 front USB 2.0 port, 1 rear USB 2.0 port
HDMI 1
VGA 1
RCA Input 1
RCA Output 1
Alarm None
Network 1 RJ–45 port (10/100 Mbps)
General Parameter
Power Supply DC12V, 1.5A
Power Consumption Total output of NVR is ≤ 10W (without HDD)
Net Weight 0.81 kg (1.79 lb)
Gross weight 1.38 kg (3.04 lb)
Product Dimensions 260 mm×225 mm×47.6 mm (W × L × H)
Box Dimensions 87 mm×331 mm×312 mm (W × L × H)
Operating Temperature -10°C to 45°C (+34°F to +113°F)
Storage Temperature 0°C to 40°C (+32°F to +104°F)
Operating Humidity                         10%~93%
Storage Humidity 30%~85%
Operating Altitude 3000 m (9843 ft)
Installation Desktop mounting
Certification CE/FCC
