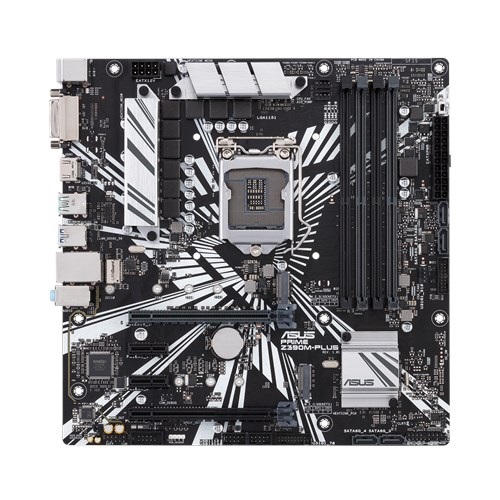

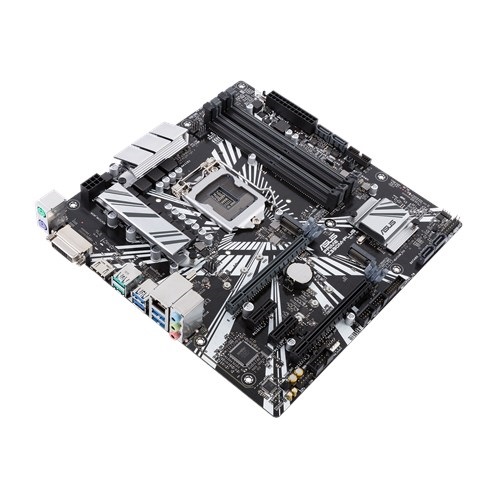

ASUS PRIME Z390M-PLUS 9th Gen mATX Motherboard

Model: PRIME Z390M-PLUS
CPU: 9th / 8th Generation Intel Processors
Chipset: Intel Z390
4 x DDR4 DIMM
4 x PCI Express slot

Available EMI Offer

TK 14000

~~TK 15190~~

Brand:

Asus

Quantity

ADD TO CART

ORDER NOW

Product Details

Basic Information
Supported CPU	Intel® Socket 1151 for 9th / 8th Generation Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0
Chipset	Intel® Z390
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Form Factor	mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Expansion Slots
PCI	1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4) * 1 x PCIe 3.0/2.0 x16 (max at x4 mode) 2 x PCIe 3.0/2.0 x1
M.2 Socket	1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
Memory
Type	4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Slots	Dual Channel Memory Architecture 4 x DIMM
Supported Memory	Supports Intel® Extreme Memory Profile (XMP) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor.
Maximum Memory	64GB
Graphics
Graphics	Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

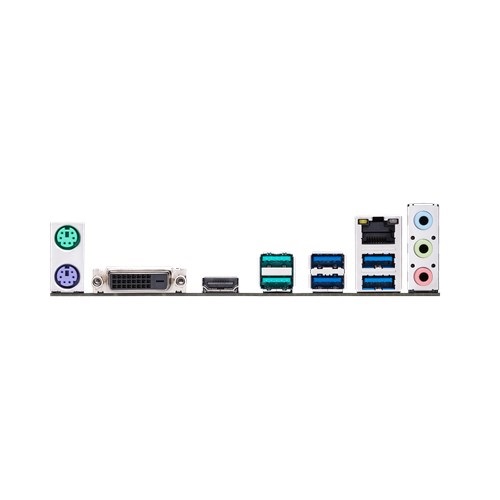

Connector & Ports
HDMI	1 x HDMI
D-Sub (s)	1 X DVI-D
USB (s)	Intel® Z390 Chipset : 2 x USB 3.1 Gen 2 port(s) Intel® Z390 Chipset : 8 x USB 3.1 Gen 1 port(s) (4 at mid-board) Intel® Z390 Chipset : 4 x USB 2.0 port(s) (4 at mid-board)
LAN Port (s)	Intel® I219V, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard
Supported Storage	Intel® Z390 Chipset : 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 4 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1) PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card
Audio	Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
Internal I/O Ports	2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! II switch(es) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Mono Out header 1 x RGB Header
TPM (Trusted Platform Module )	N/A
Warranty Information
Manufacturing Warranty	3 Years Limited
