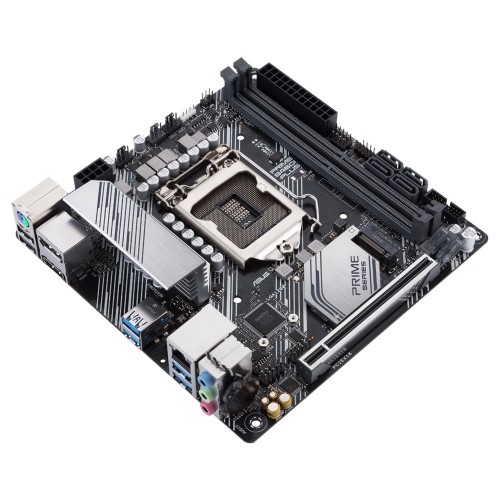

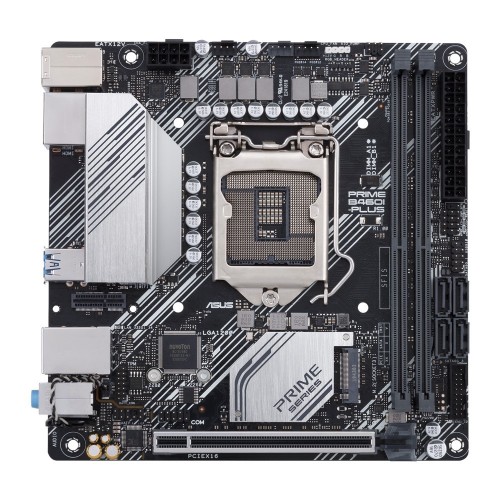

Asus Prime B460I-Plus Intel 10th Gen Mini ITX Motherboard


  • Model: Asus Prime B460I-Plus
  • Intel LGA 1200 socket: Ready for 10th Gen Intel Core processors
  • Fan Xpert 4
  • Enhanced power solution
  • Ready for Ultrafast Connectivity

TK 11200

TK 12040

Brand:

Asus




Product Details

Specification

Basic Information
Supported CPU Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel B460
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor 6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm )
Expansion Slots
PCI 1 x PCIe 3.0/2.0 x16 (x16 mode)
M.2 Socket 1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (PCIE mode)
Memory
Type Dual Channel Memory Architecture
Slots 2 x DIMM
Supported Memory Supports 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory 64GB
Graphics
Graphics Integrated Graphics Processor- Intel UHD Graphics support
1 x DisplayPort 1.4
1 x HDMI 1.4b
Connector & Ports
HDMI 1 x HDMI 1.4b
Display Port (s) 1 x DisplayPort 1.4

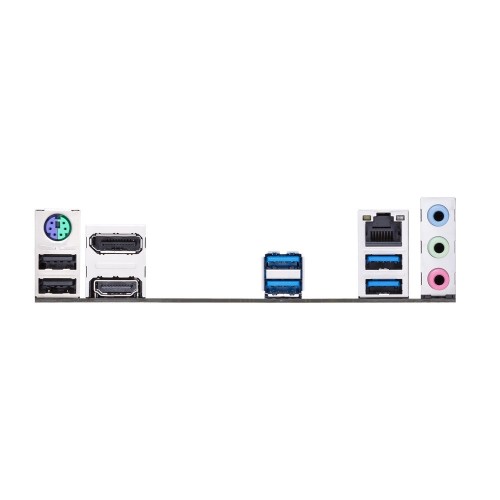

USB (s) Rear USB Port ( Total 6 )
4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 4 )
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)
2 x USB 2.0 port(s)
LAN Port (s) Realtek RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard
Supported Storage Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports
Intel B460 Chipset :
1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (PCIE mode)
4 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology supports
Intel Optane Memory Ready
Audio Realtek ALC887 7.1-Channel High Definition Audio CODEC
- Supports : Jack-detection, up to 24-Bit/192kHz playback
Audio Feature :
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
Internal I/O Ports 1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
1 x Aura RGB Strip Header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3
1 x M.2 with E key for Wi-Fi module
4 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x Speaker connector
TPM (Trusted Platform Module ) 1 x SPI TPM header
Warranty Information
Manufacturing Warranty 03 Years
