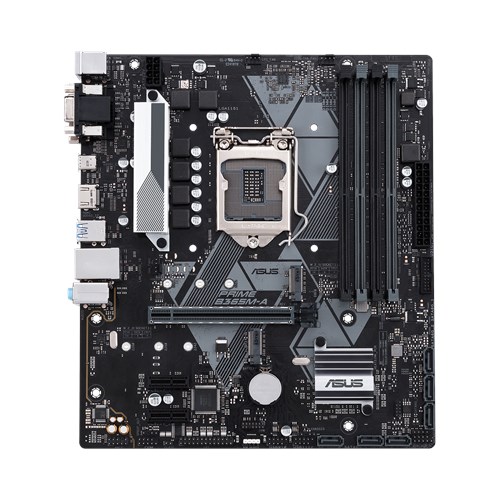

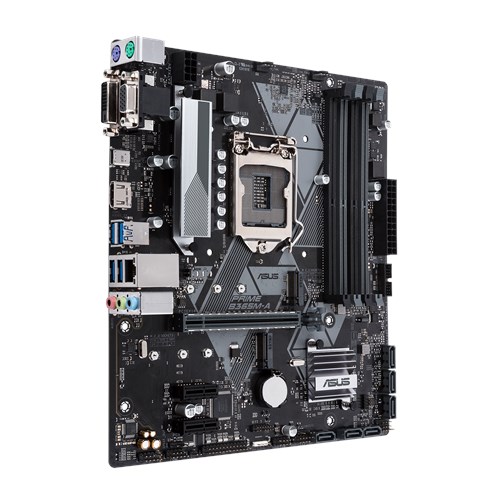

Asus Prime B365M-A DDR4 9th Gen Motherboard

Computer Components > Motherboard > ASUS (INTEL)

Asus Prime B365M-A DDR4 9th Gen Motherboard

Model: Asus Prime B365M-A
Intel Socket 1151 for 9th / 8th Gen Processor
Chipset Intel B365
Max. 64GB Memory

Available EMI Offer

TK 9400

~~TK 10200~~

Brand:

Asus

Quantity

ADD TO CART

ORDER NOW

Product Details

Basic Information
Supported CPU	Intel Socket 1151 for 9th / 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0
Chipset	Intel B365
BIOS	128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified log, F6 Qfan Control, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Form Factor	mATX Form Factor 9.6 inch x 8.6 inch ( 24.4 cm x 21.8 cm )
Audio	Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
Expansion Slots
PCI	1 x PCIe 3.0 x16 (x16 mode) 2 x PCIe 3.0/2.0 x1
M.2 Socket	2 x M.2 Socket 3 for M Key, Type 2242/2260/2280 devices
Memory
Slots	Dual Channel Memory Architecture
Supported Memory	4 x DIMM, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Maximum Memory	64GB
Graphics
Graphics	Integrated Graphics Processor- Intel HD Graphics support Multi-VGA output support : HDMI/DVI-D/D-Sub ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Max Shared Memory	1024 MB

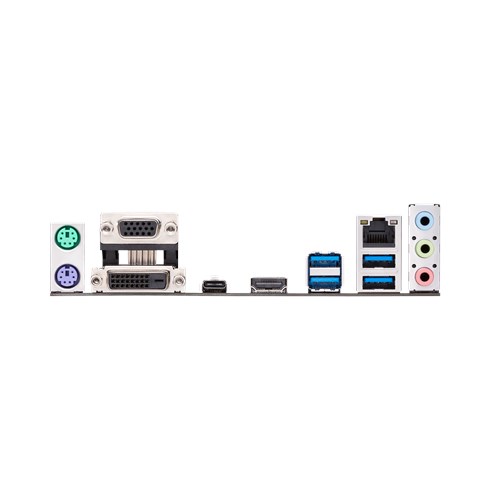

Connector & Ports
HDMI	1 x HDMI
D-Sub (s)	1 x D-Sub
DVI-D (s)	1 x DVI-D
USB (s)	1 x USB 3.1 Gen 1 USB Type-CTM up to 5Gbps 4 x USB 3.1 Gen 1 Type-A
LAN Port (s)	1 x LAN (RJ45) port(s)
Audio	1 x 8-channel Audio I/O
TPM (Trusted Platform Module )	1 x TPM header
Warranty Information
Manufacturing Warranty	02 Years
