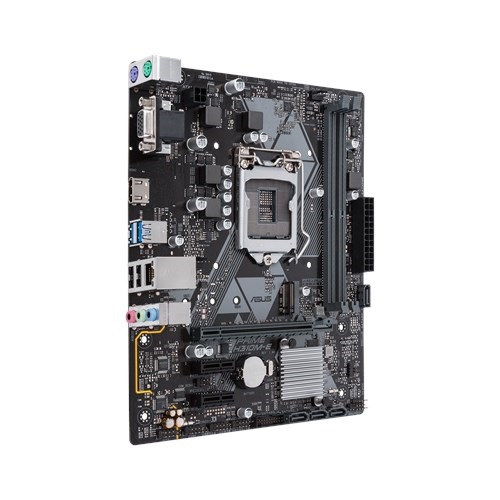

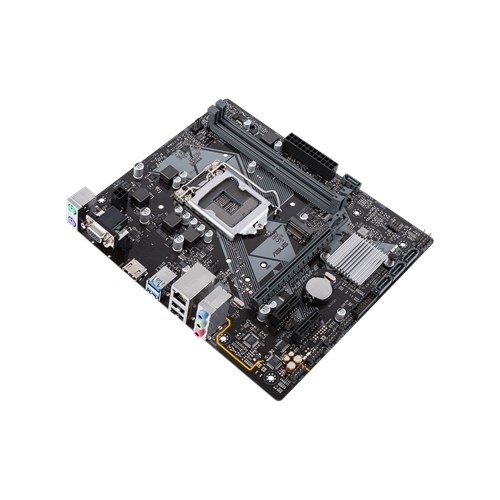

Asus PRIME H310M-E R2.0 8th Gen mATX Motherboard

Computer Components > Motherboard > ASUS (INTEL)

Asus PRIME H310M-E R2.0 8th Gen mATX Motherboard

Model: PRIME H310M-E
CPU: 8th Generation Intel Processors
Chipset: Intel H310
2 x DDR4 DIMM
3 x PCI Express slot

Available EMI Offer

TK 7000

~~TK 7270~~

Brand:

Asus

Quantity

ADD TO CART

ORDER NOW

Product Details

Specification

Basic Information
Supported CPU	Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0
Chipset	Intel® H310
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information
Form Factor	mATX Form Factor 8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm )
Expansion Slots
PCI	1 x PCIe 3.0/2.0 x16 (x16 mode, gray) 2 x PCIe 2.0 x1
M.2 Socket	1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)
Memory
Type	2 x DIMM
Slots	DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supported Memory	DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
Maximum Memory	32GB
Graphics
Graphics	Multi-VGA output support : HDMI/D-Sub ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 25600 x 1600 @ 60 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Max Shared Memory	1024 MB
Connector & Ports
HDMI	1 x HDMI
D-Sub (s)	1 X D-sub
USB (s)	Intel® H310 Chipset : 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board) Intel® H310 Chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
LAN Port (s)	Realtek® RTL8111H, 1 x Gigabit LAN
Supported Storage	Intel® H310 Chipset : 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*1 4 x SATA 6Gb/s port(s), gray,
Audio	Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Internal I/O Ports	1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector
TPM (Trusted Platform Module )	1 x TPM header
Warranty Information
Manufacturing Warranty	03 years
