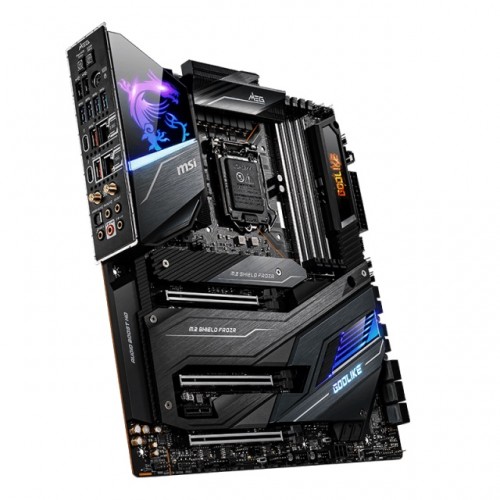

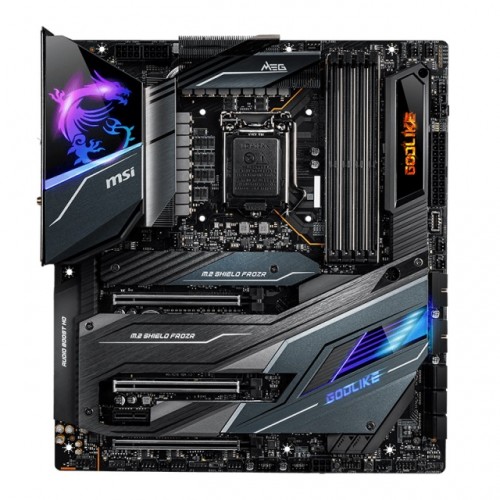

MSI MEG Z490 GODLIKE 10th Gen E-ATX Gaming Motherboard

Computer Components > Motherboard > MSI (INTEL)

MSI MEG Z490 GODLIKE 10th Gen E-ATX Gaming Motherboard

Model: MSI MEG Z490 GODLIKE
Supports 10th Gen Intel Processors for LGA 1200
Dynamic Dashboard II
Extreme Power Design
DDR4 Memory, up to 5000(OC)

Available EMI Offer

TK 74800

~~TK 81380~~

Brand:

msi

Quantity

ADD TO CART

ORDER NOW

Product Details

Basic Information
Supported CPU	Supports 10th Gen Intel Core and Pentium Gold /Celeron processors for LGA 1200 socket
Chipset	Intel Z490 Chipset
Form Factor	12 in. x 10.9 in. (30.5 cm x 27.7 cm) E-ATX Form Factor
Expansion Slots
PCI	3x PCIe 3.0 x16 slots, support x16/ x0/ x4 or x8/ x8/ x4 mode 1x PCIe 3.0 x1 slot
M.2 Socket	M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
Memory
Type	Dual-Channel Architecture
Slots	4
Supported Memory	Supports 1R 2133/2666/2933 MHz 1DPC 1R Max speed up to 5000+ MHz 1DPC 2R Max speed up to 4400+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz
Maximum Memory	128GB
Graphics
Graphics	Intel JHL7540 Thunderbolt 3 Controller 2x Thunderbolt 3 (Type-C) ports on the back panel Supports Thunderbolt 3 with a maximum resolution of 5120x2880 @60 Hz Supports DisplayPort 1.4 with a maximum resolution of 4096x2304 @60 Hz
Max Shared Memory	Maximum shared memory is 1GB

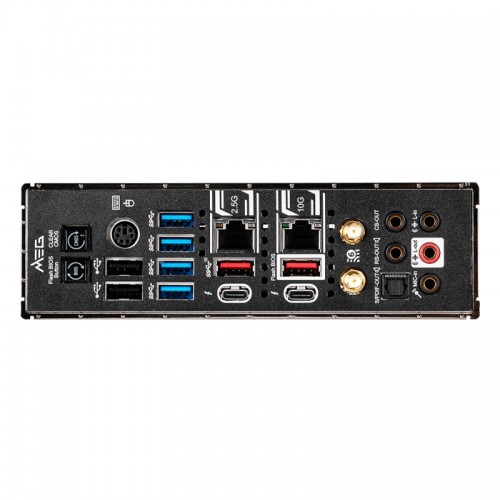

Connector & Ports
Display Port (s)	1x Display Port 1.4 (4096x2304 @60 Hz)
USB (s)	Intel Z490 Chipset 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) ASMedia ASM1074 Chipset 8x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 4 ports through the internal USB 3.2 Gen 1 5Gbps connectors) Intel JHL7540 Thunderbolt 3 Controller 2x USB 3.2 Gen 2 10Gbps Type-C ports on the back panel Intel JHL7540 Thunderbolt 3 Controller 2x Thunderbolt 3 (USB Type-C) ports on the back panel Supports up to 40 Gbps transfer rate with Thunderbolt 3 devices Supports up to 10 Gbps transfer rate with USB 3.2 Gen 2 10Gbps devices Supports up to 5V/3A , 15W power charging Supports Daisy-chain up to six ThunderboltTM 3 devices
LAN Port (s)	1x Aquantia AQC107 10G LAN controller 1x Realtek RTL8125B 2.5G LAN controller
Supported Storage	Intel Z490 Chipset 6x SATA 6Gb/s ports 3x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors
Audio	Realtek ALC1220 Codec + ESS E9018 combo DAC 7.1-Channel High Definition Audio Supports Optical S/PDIF output
Internal I/O Ports	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin ATX PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 8x 4-pin system fan connectors 1x 3-pin Water Flow connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 2-pin Thermal Sensors connectors 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR LED connector
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	03 Years Warranty
